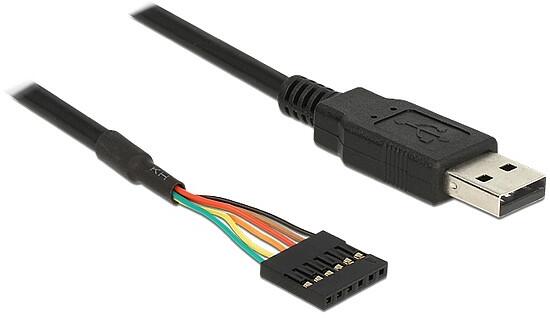

This USB TTL converter by Delock is due to its wide temperature range most suitable for industrial applications. It supports virtual COM ports and enables optional a direct access to the interface. The converter is multifunctional compatible to the standard systems Windows, Linux and MAC. It is suitable for Embedded systems, control systems, Field Programmable Gate Array, MCUs, dongles etc. Műszaki adatok: Connector: USB 2.0 type A male > TTL 6 pin pin header Pin assignment: 1. GND 2. CTS 3. VCC 4. TXD 5. RXD 6. RTS Chipset: FTDI 232RL Cable gauge: 26 AWG Temperature range: -20 C to +80 C No-load current: 70 uA Converter: 5 V / 15 mA (VCC, GND) Compatible to UHCI / OHCI / EHCI controller LVTTL 3,3 V (data) / 4 mA or HighLevel 12 mA Data rate 300 baud - 3 Megabaud Databit: 7 or 8 Stoppbits: 1 or 2 Parity: none, space, even, odd, mark Flow control: software XON / XOFF or hardware RTS / CTS FIFO: 128 Byte RX 256 Byte TX Cable length: ca. 1.80 m Rendszerkövetelmények Windows XP/XP-64/Vista/Vista-64/7/7-64/8.1/8.1-6 4/10/10-64, Windows CE 4.2, 5.0, 6.0, Mac OS 10.5, 10.6, Mac OS ex 10.9, Linux ex Kernel 2.6 PC or laptop with a free USB type A port A csomag tartalma USB TTL cable Driver CD User manual Csomag Retail Box Gyártó: Delock
